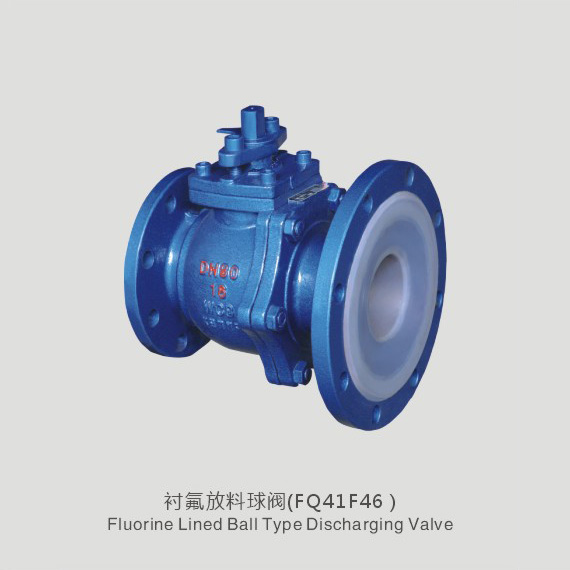

Fluorine lining dump valve FQ41F46

Product introduction
F46 dump valve is mainly installed on bottom of reaction still.

Design specifications
GB12237/API608/API6D


Drive mode
manual operation, worm drive, air-operated, power-driven.


Performance specification

Design and manufacturing	Structure length	Connection flange	Pressure testing	Product mark	Delivery specification
GB/T12237	HG/T3704-2003 GB/T1221	HG20592-97	GB/T13927-92	GB12220	GB/T12252

nominal pressure: PN1.0-1.6(MPa), inside nominal diameter: DN15-DN250(mm)

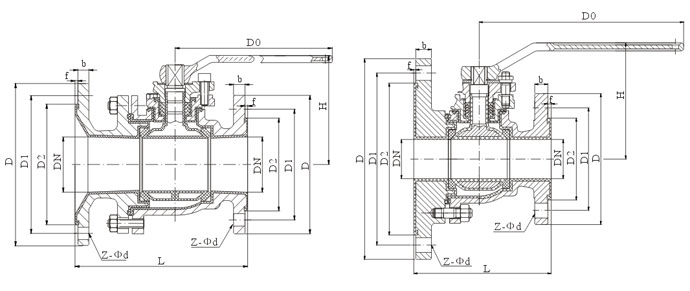

Sketch map



Main connection size and weight

inside nominal diameter		standard valves							reference value
DN(mm)		L	D	D1	D2	f	b	Z-Φd	Do	H	W(kg)
		PN1.0(MPa)
69(standard)	100/50	200	160/230	125/190	100/165	3/4	20/22	4-Φ18/8-Φ14	250	125	13
	125/80	250	195/245	160/210	135/185	4/4	22/24	4-Φ18/10-Φ14	300	184	22
79(standard)	70/32	165	140/160	100/130	75/100	3/3	18/20	4-Φ18/4-Φ14	200	115	10
	80/40	180	145/185	110/150	85/125	4/4	18/20	4-Φ18/4-Φ18	250	125	11
	100/50	200	160/205	125/170	100/145	3/4	20/22	4-Φ18/4-Φ18	250	125	11.5
	125/80	250	195/245	145/200	135/175	4/4	22/24	4-Φ18/8-Φ18	300	184	22

Non-standard dump valve size

inside nominal diameter	standard valves							reference value
DN(mm)	L	D	D1	D2	f	b	Z-Φd	Do	H
80/50	175	160/195	125/150	100/135	3/3	20/20	4-Φ18/8-Φ18	250	135
100/50	175	160/215	125/170	100/155	3/3	20/22	4-Φ18/8-Φ18	250	135
125/50	175	160/240	125/200	100/180	3/3	20/24	4-Φ18/8-Φ18	250	135
125/65	190	180/240	160/225	120/180	3/3	20/24	4-Φ18/8-Φ18	300	145
125/80	220	195/265	125/170	135/210	3/3	22/24	8-Φ18/8-Φ18	350	185
150/100	280	215/265	180/225	155/190	3/3	22/24	8-Φ18/8-Φ18	400	195
